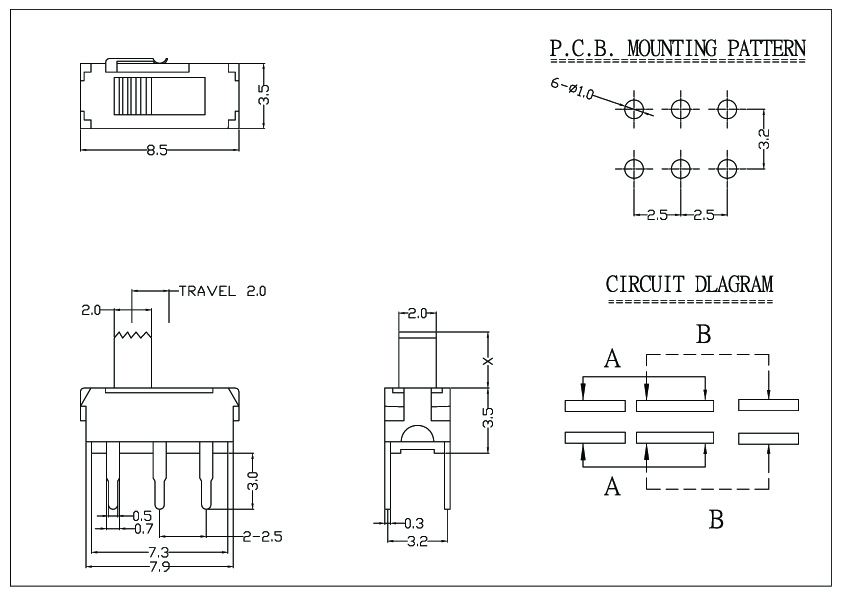

MSS-12D18

Typical Specification

  1. Rating: DC 6v 0.3A
  2. Circuit: 1C-2P
  3. Contact resistance: 70MΩ max
  4. Operating Force: 200±100gf
  5. Operating life: 10,000 Cycles

Specification

MSS-12D18
