Home > Switch Series > Dip Switch > DSP-080-LR

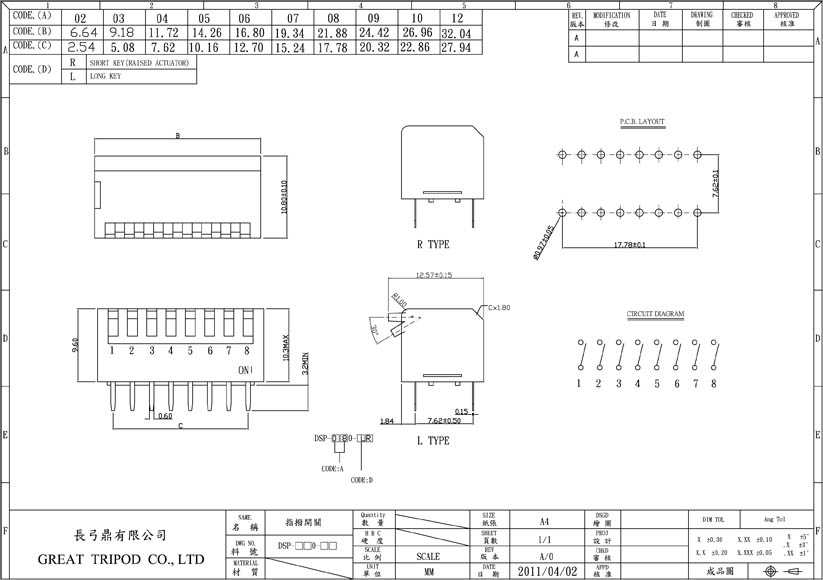

DSP-080-LR

Typical Specification

  1. Non-Switching Rating: 100mＡ,50V / DC
  2. Switching Rating: 25mＡ,24V/ DC
  3. Operating Force: 400gf Max
  4. Contact resistance: 100 mΩ max
  5. Insulation resistance: 100MΩ min
  6. Operating life: 2,000 cycles

Specification

DSP-080-LR
