Home > Switch Series > Detector Switch > DS-14 > DS-1411S

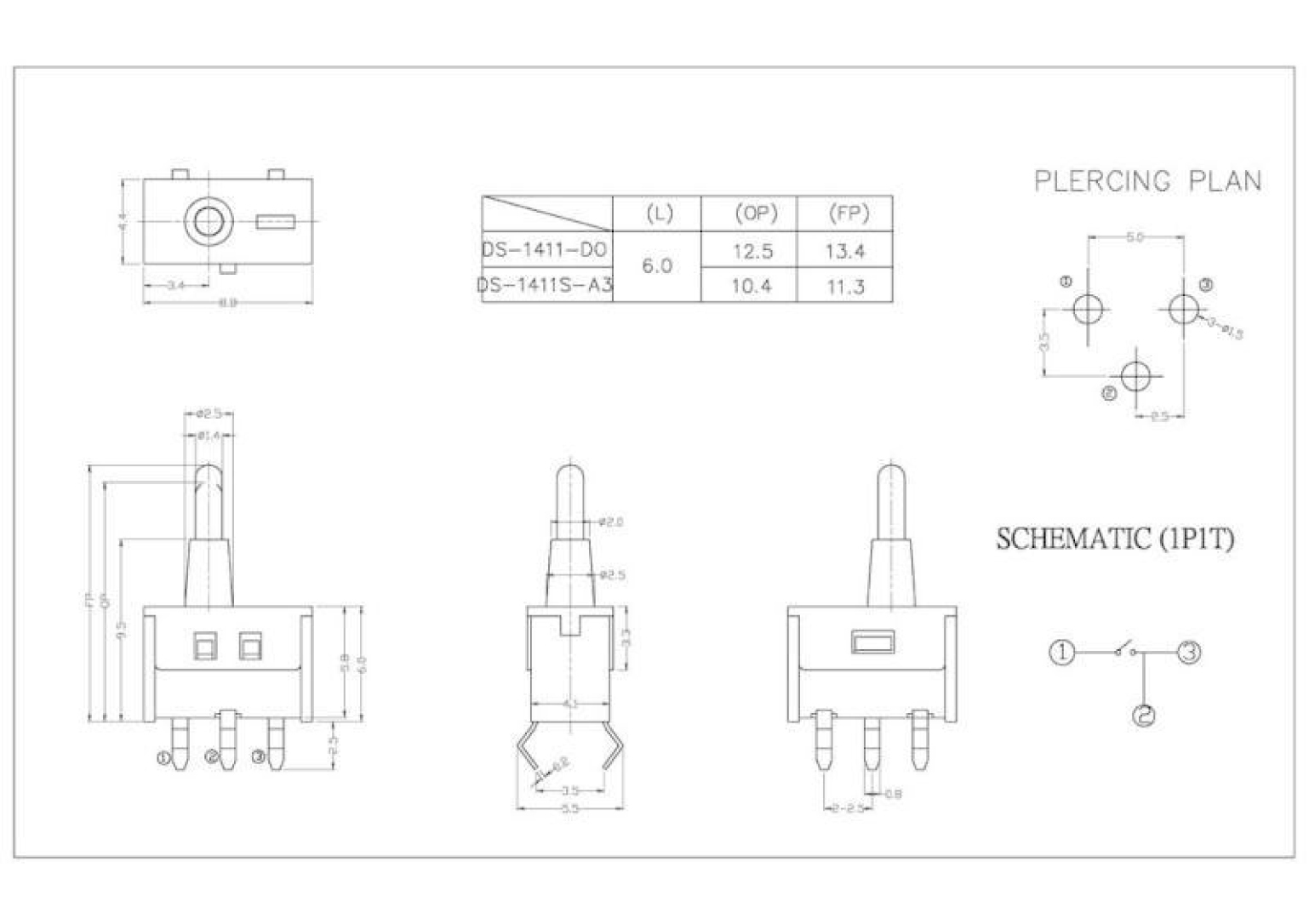

DS-1411S

Typical Specification

  1. Rating: DC12v 10mA
  2. Free Position: 13.4±0.3mm
  3. Operating Position: 12.5±0.3mm
  4. Contact resistance: 100MΩ max
  5. Insulation resistance: 100MΩ min
  6. Operating life: 50,000 cycles

Specification

DS-1411S
