Home > Switch Series > Detector Switch > DS-11 > DS-1120-PB

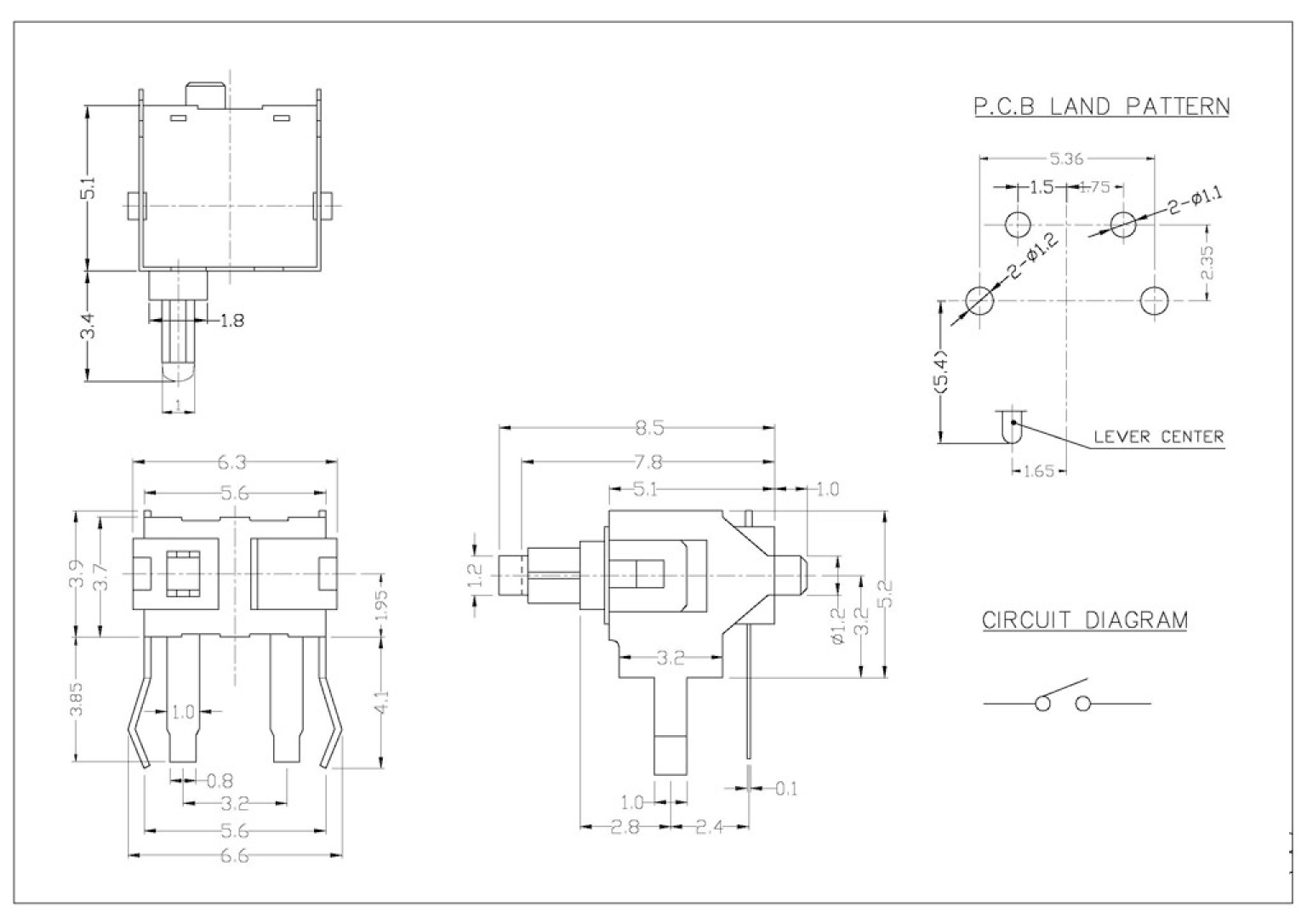

DS-1120-PB

Typical Specification

  1. Rating: 1A 125/250 VAC
  2. Operating Force: 105±20gf
  3. Release Force: 70±10gf
  4. Free Position: 8.0±1.0mm
  5. Operating Position: 6.0±0.8mm
  6. Release Position: 5.5±0.8mm
  7. Movement Differential: 0.1±0.05mm
  8. Total Travel Position: 5.1±0.1mm
  9. Operating life: 50,000 cycles

Specification

DS-1120-PB
