Home > Switch Series > Detector Switch > DS-11 > DS-1120-85

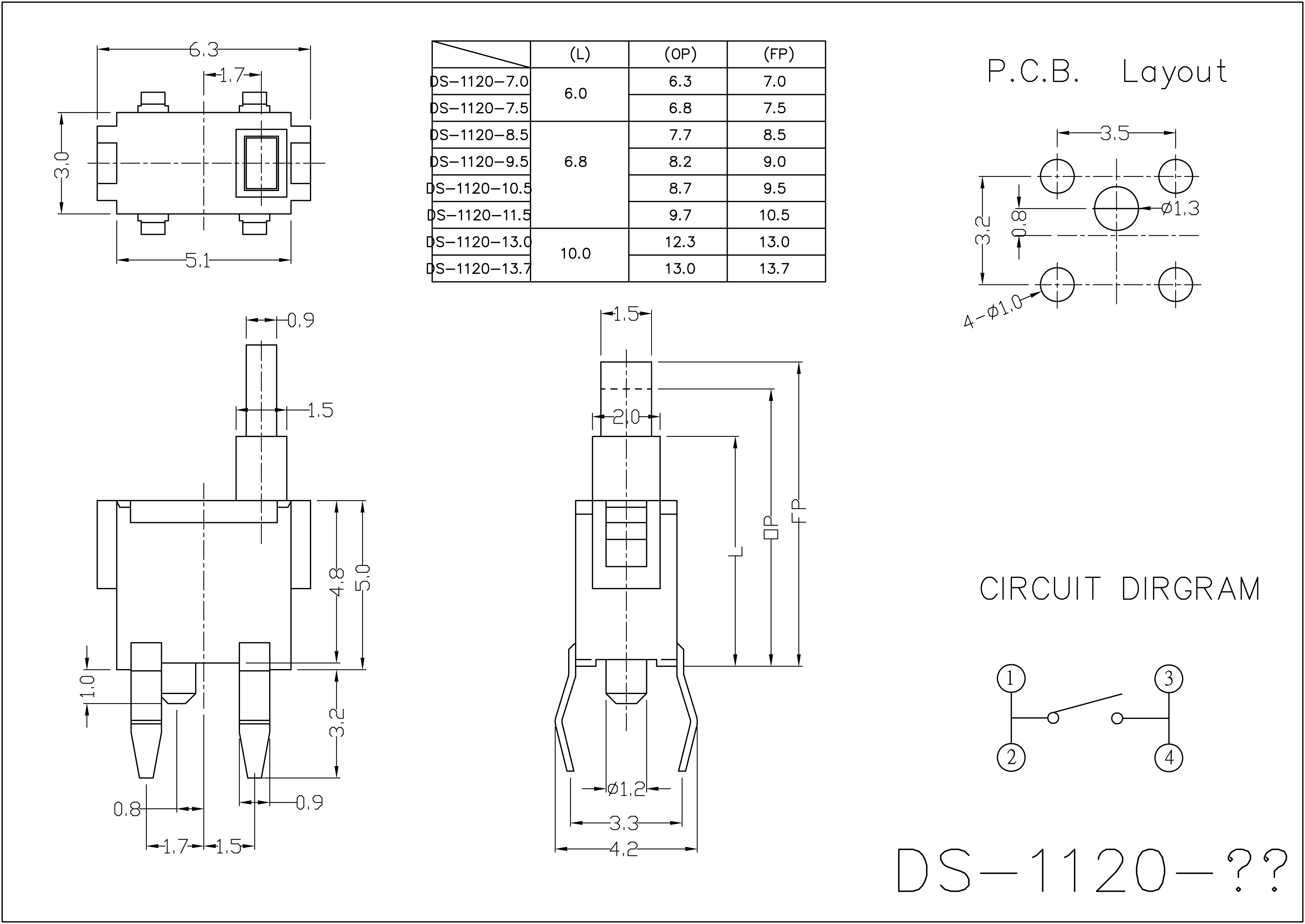

DS-1120-85

Typical Specification

  1. Rating: DC12v 10mA
  2. Free Position: 8.5±0.3mm
  3. Operating Position: 7.9±0.3mm
  4. Contact resistance: 100MΩ max
  5. Insulation resistance: 100M min
  6. Operating life: 50,000 cycles.

Specification

DS-1120-85
