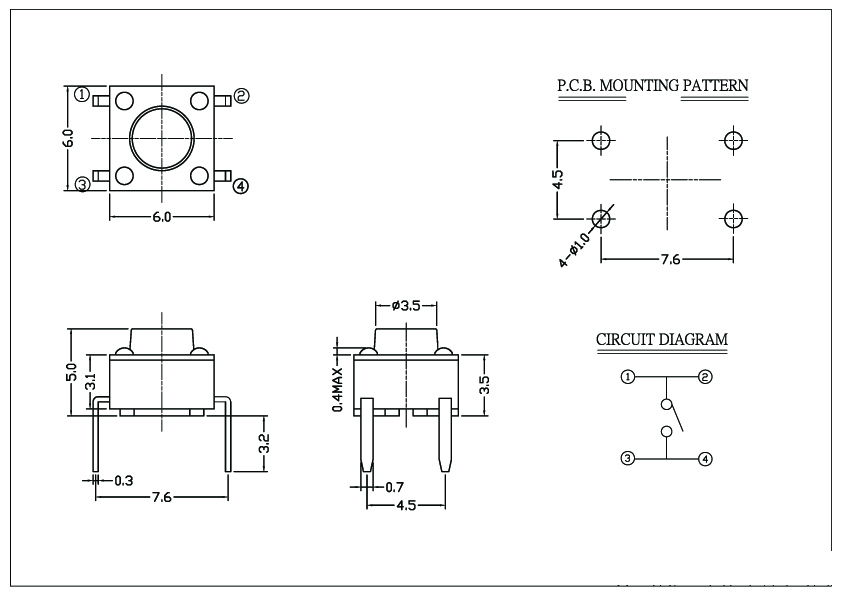

KSN-0EH0500

Typical Specification

  1. Rating: DC 12V 50mA
  2. Travel: 0.25±0.10mm
  3. Operating Force: 260±80gf
  4. Return Force: 60gf min
  5. Contact resistance: 100MΩ max
  6. Insulation resistance: 100MΩ min
  7. Operating life: 300,000 cycles

Specification

KSN-0EH0500
