Home > Switch Series > Tact Switch > KSL > KSL-6EH7500DE

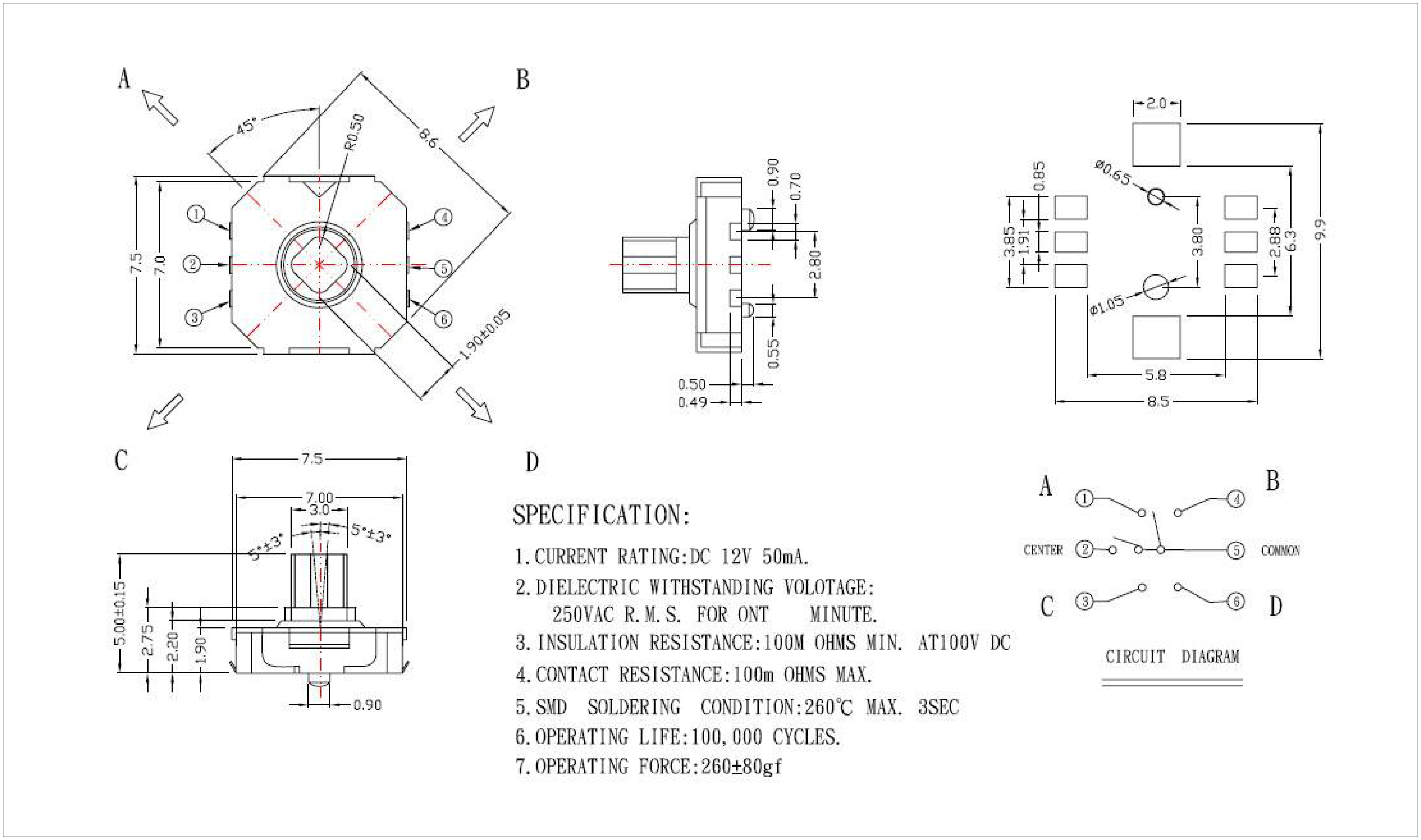

KSL-6EH7500DE

Typical Specification

  1. Rating: DC12v 50mA
  2. Travel: 4-direction:0.25±0.1mm
    Center Push:0.2±0.1mm
  3. Operating Force: 4-direction:130±40gf
    Center Push:260±80gf
  4. Return Force: 60gf min
  5. Contact resistance: 100MΩ
  6. Insulation resistance: 100MΩ
  7. Operating life: 100,000 cycles

Specification

KSL-6EH7500DE
