Home > Switch Series > Tact Switch > KSL > KSL-2EG4250

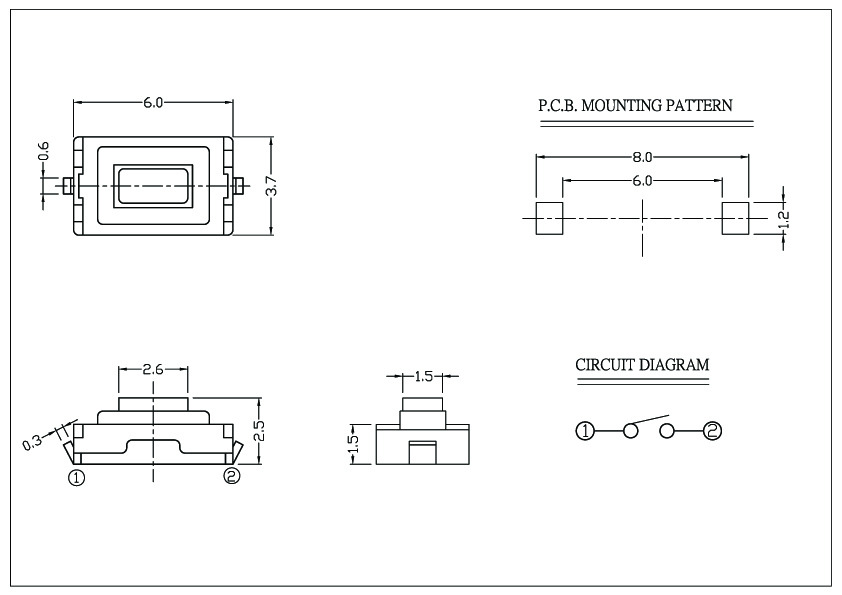

KSL-2EG4250

Typical Specification

  1. Rating: DC12v 50mA
  2. Travel: 0.20±0.10mm
  3. Operating Force: 160±50gf
  4. Return Force: 60gf min
  5. Contact resistance: 100MΩ max
  6. Insulation resistance: 100MΩ min
  7. Operating Life : 30,000 cycles

Specification

KSL-2EG4250
